How do I know if this aftermarket mirror fits my sportsbike?
Measure it first. Here is how.
1. Prep

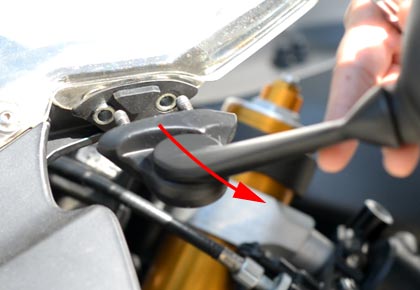

Remove the original mirrors. Keep all taken off parts in place just in case if you would need to use them later.
2. Check the Mirror Base
Download the 1:1 actual size PDF from our website. Print the PDF out as a template and cut out the paper pieces around its shape if needed.

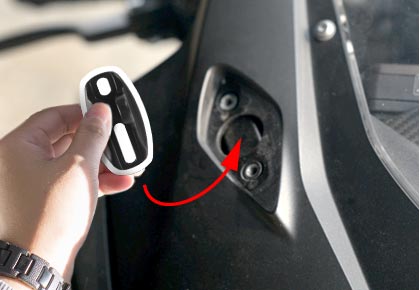

Put the template on the fairing directly to see if the shape of the mirror base fits the fairing. (The mounting surface should be flat.)
If it fits:
Continue to check the hole spacing.
If it doesn't fit:
You’ll have to customize it to fit the mirror base, then continue to check the hole spacing.
3. Check the Hole Spacing

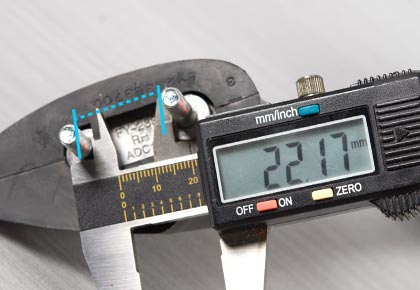

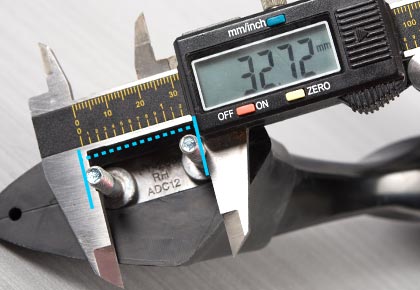

Measure the maximum and minimum distance between two bolts (or two bolt holes).
(MAX+min) / 2 = bolt distance from center to center (C2C)
If the C2C value is within 26mm~55mm:
Continue to check the hole size.
If it's not between 26mm~55mm:
You’ll have to customize it to 26mm~55mm, then continue to check the hole size.
4. Check the Bolt Size

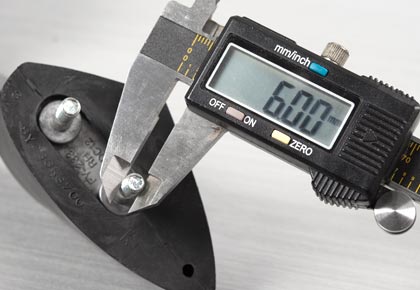

Measure the diameter of the bolts.
If the bolt size is 6mm:
Please choose “universal fairing mount (6mm)”.
If the bolt size is 5mm:
Please choose “fairing mount (5mm for Ducati Panigale)”.
If the bolt size is not 5mm or 6mm:
You’ll have to customize the bolt to 6mm or 5mm.
Here is a fitment list that we collected for reference.
(Not all models are tested, so we strongly suggest checking dimensions to best see if the mirrors fit your motorcycle)
Current listing is using our 3rd generation sportsbike adapter.
If you like our 2nd generation sportsbike adapter, this is the fitment article for it.
