Click to see:Dedicated Rod List







- Part Number: RO-8203
- Brand Model: Honda NSR125 1992-2000,Honda CRM 125 1990-1999
- Material: double forged heavy duty AISA or SCM420H case harden chromoly

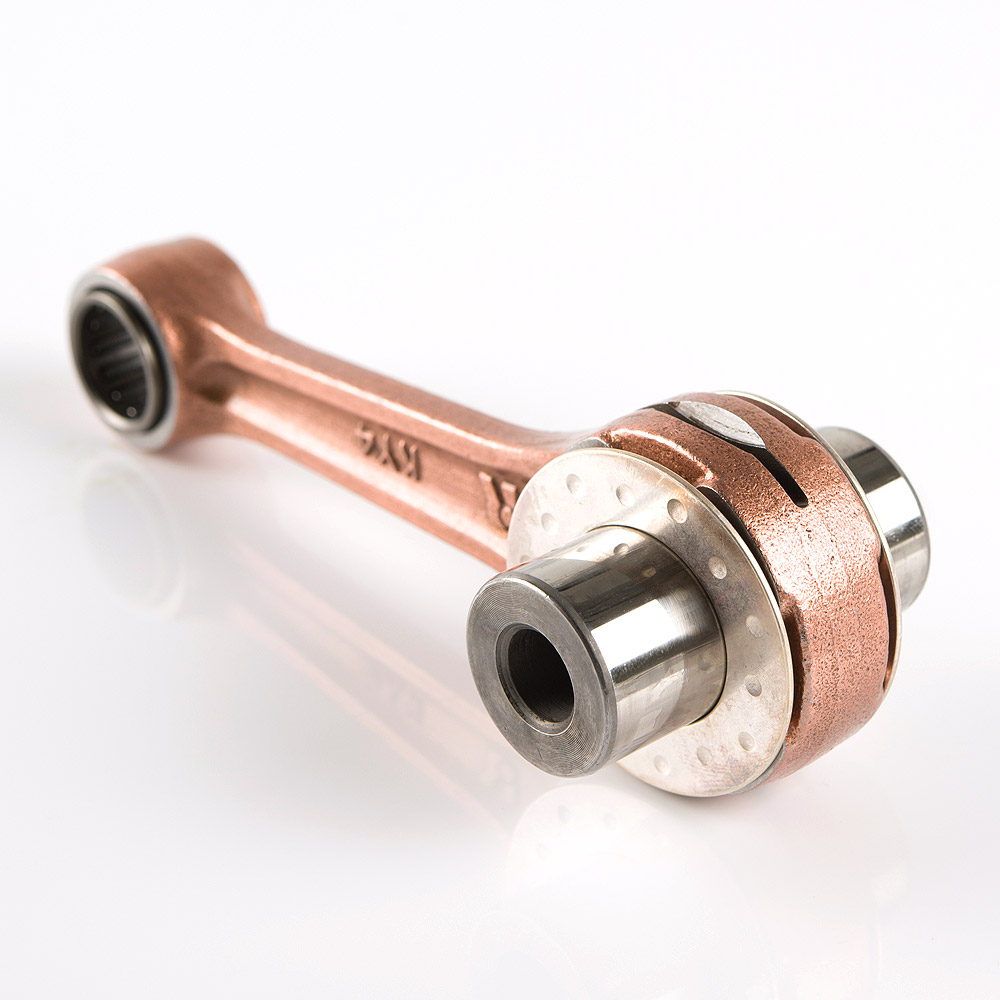

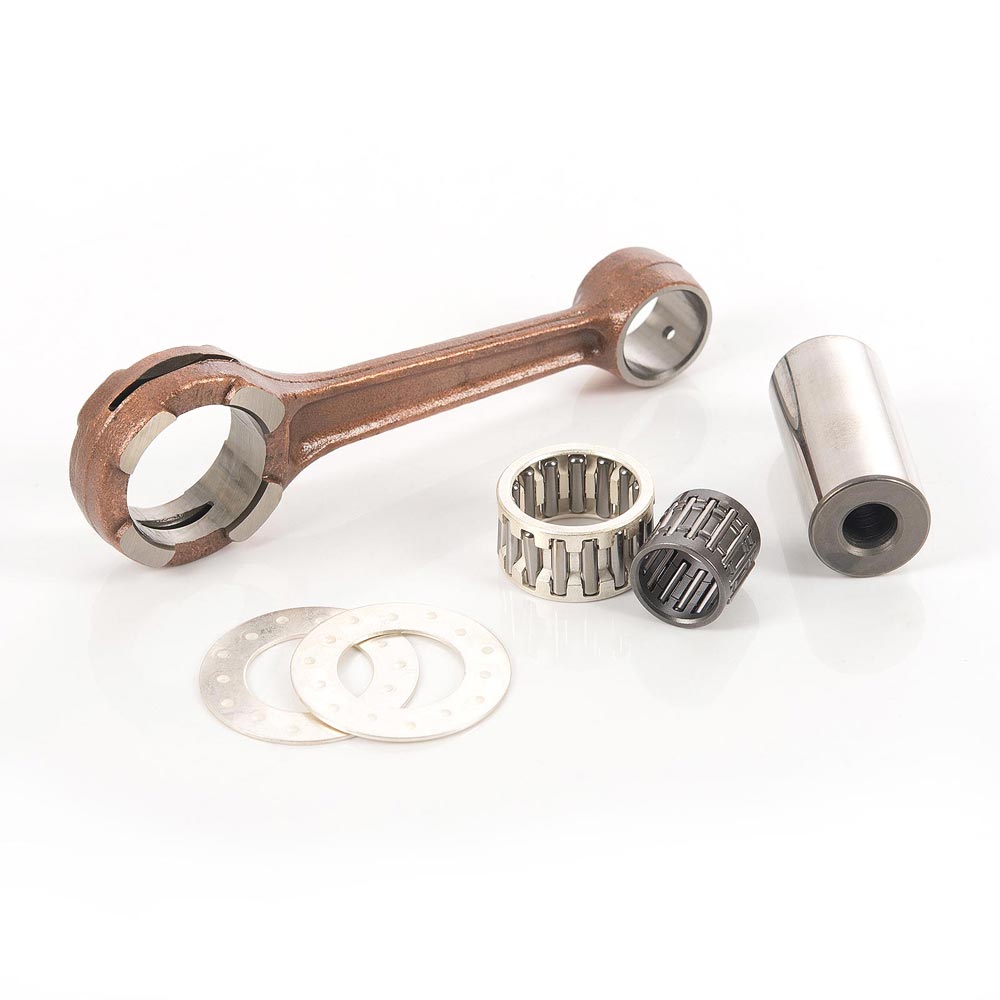

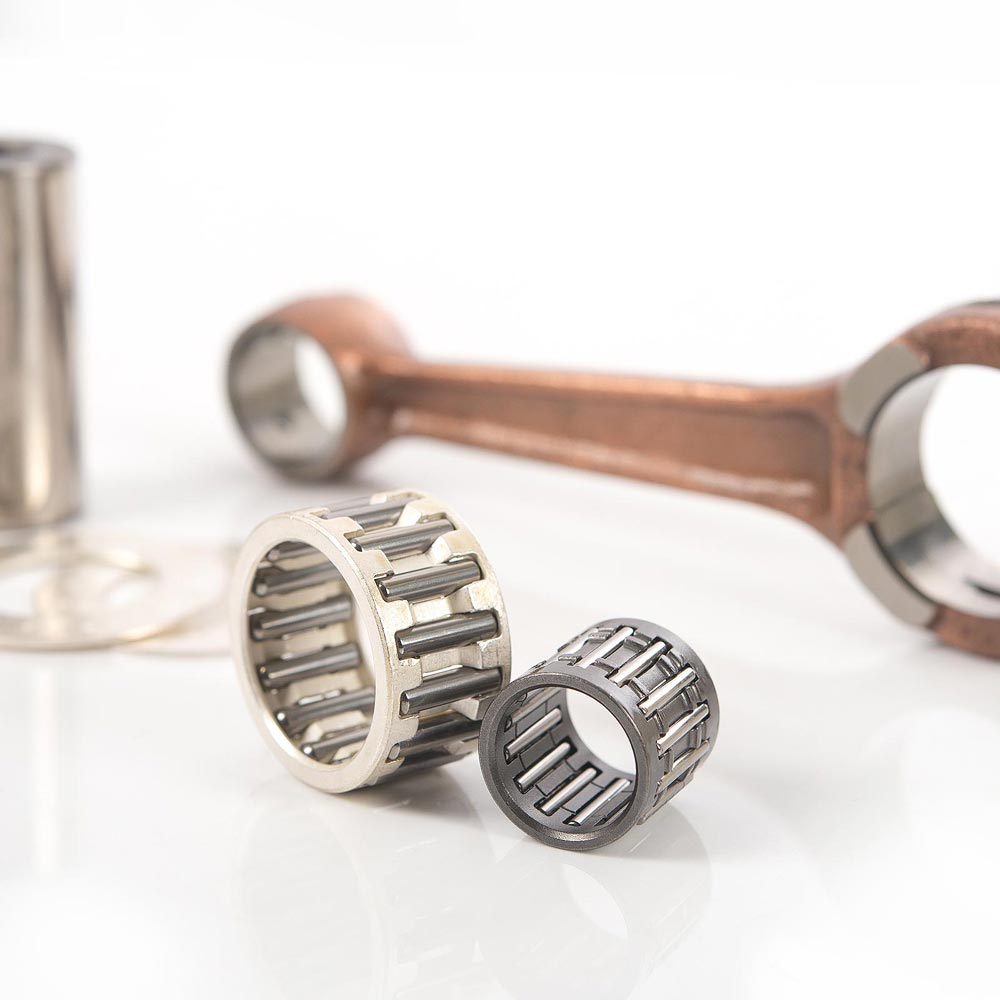

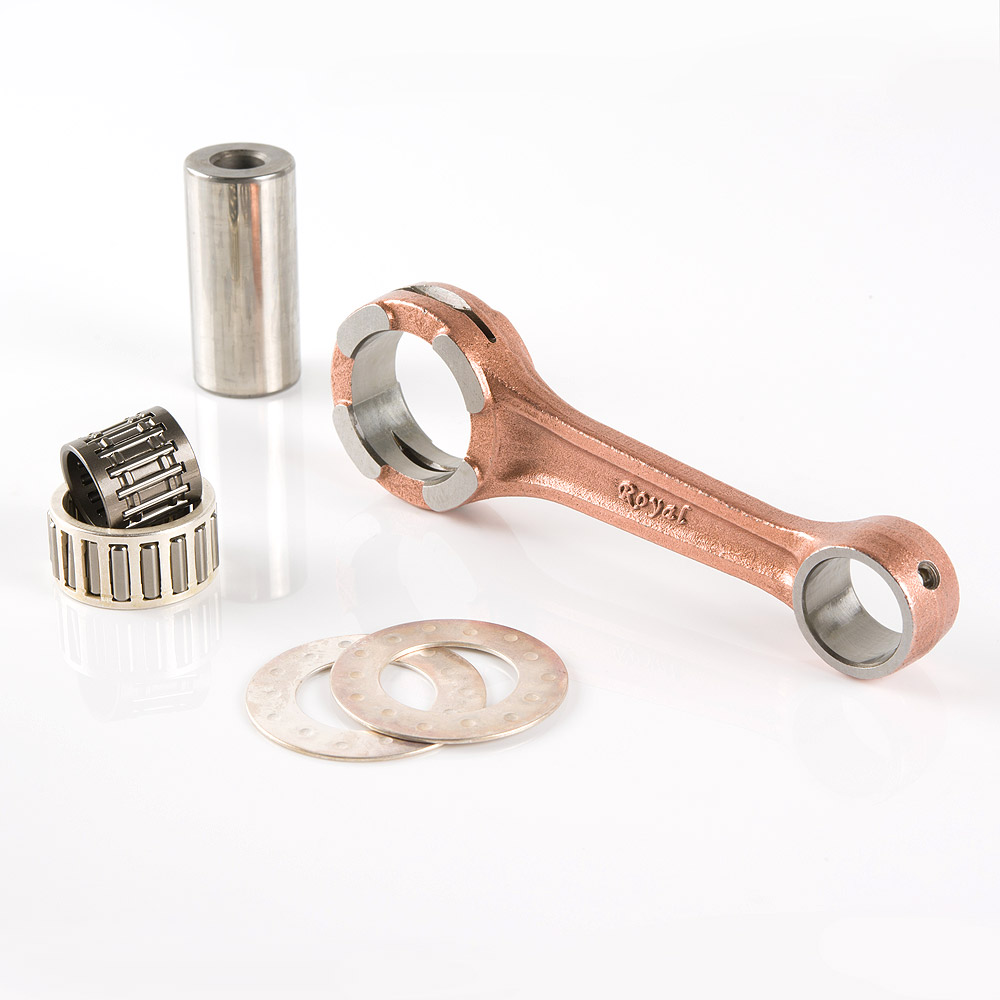

- Package: forged rod x 1, big end bearing x 1, small end bearing x 1, crank pin x 1, thrust washer x 2
- Weight: Net Weight:400g,total weight:460g (Total package,included packing)

ITEM NO. | MODEL | A | B | C | D | E | unit: mm |
RO-8203 | Honda NSR125 | 31 | 20 | 104 | 16 | 16 | PIN: Ø24*51 WASHER: Ø24.2*Ø42*1 |
BIG END BEARING: 24*31*15.8 | |||||||
SMALL END BEARING: 16*20*19.5 |
