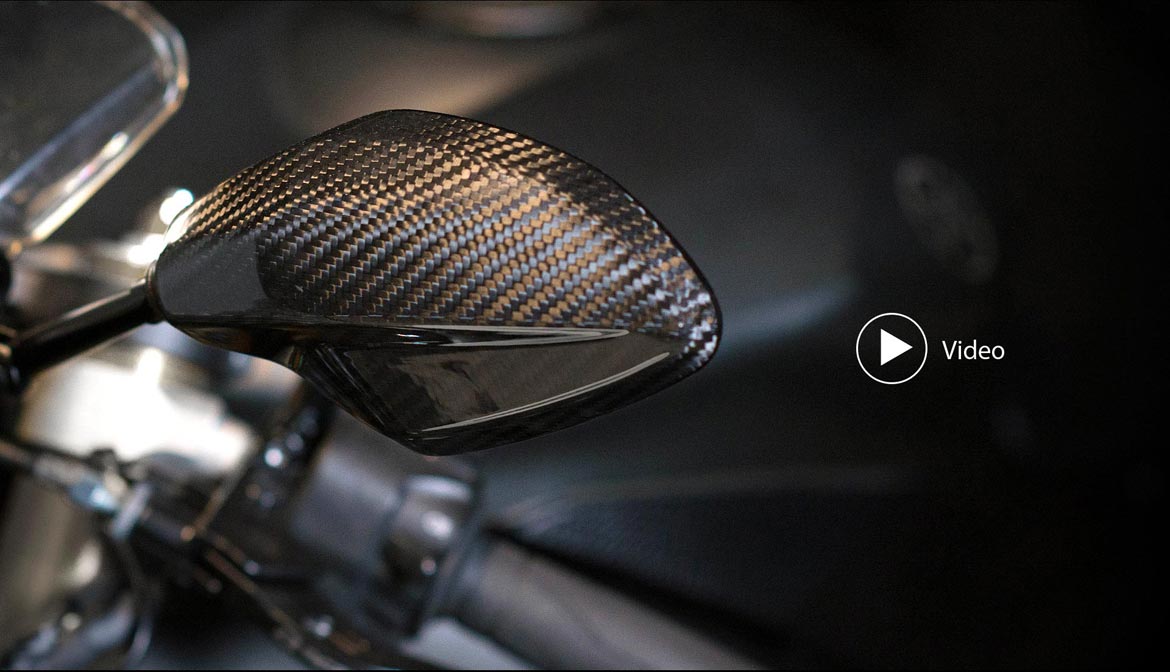

バイクのカウルミラー交換に困っているのでしょうか?
それならで取付の動画見てみましょう!
カウルミラー パンサー カーボンファイバー製 フェアリング取付 汎用

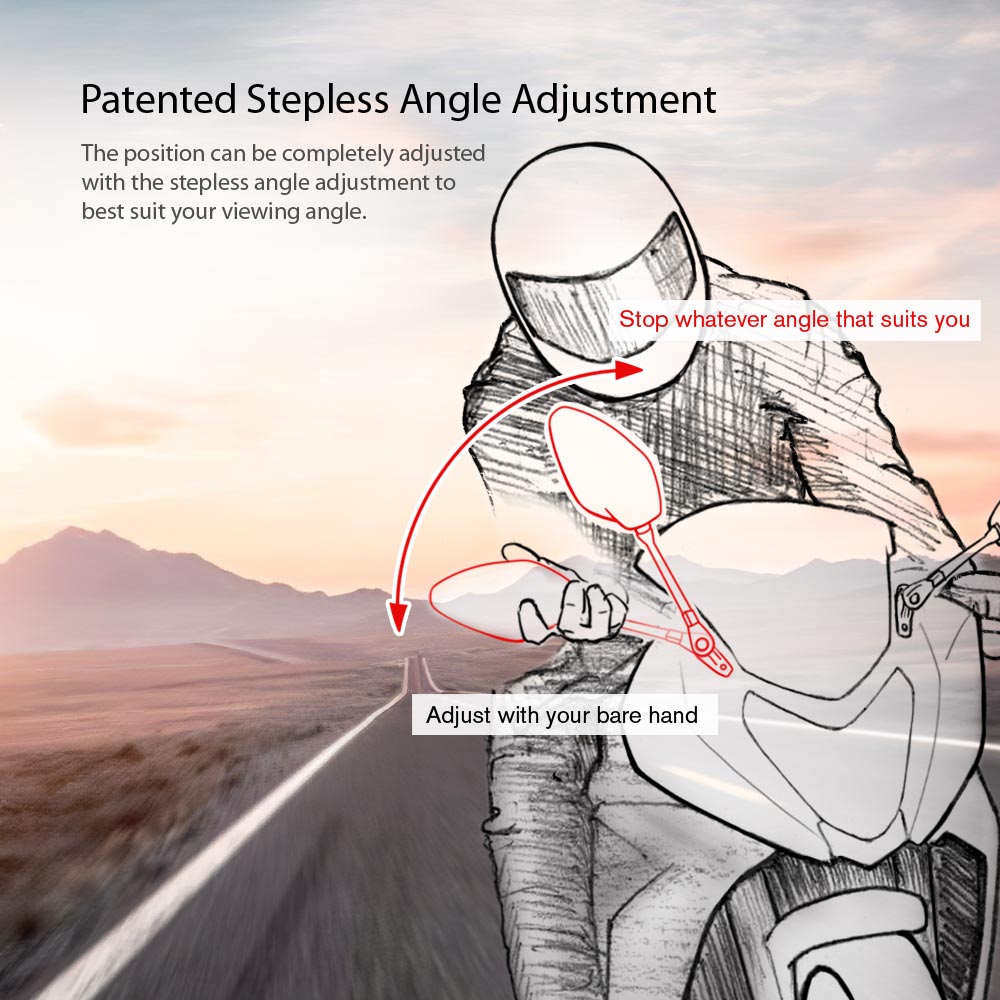

1.特許テフロン(PTFE)ブッシングジョイントで、素手だけで簡単に調整できる!ボルトの緩めも締めも不要!

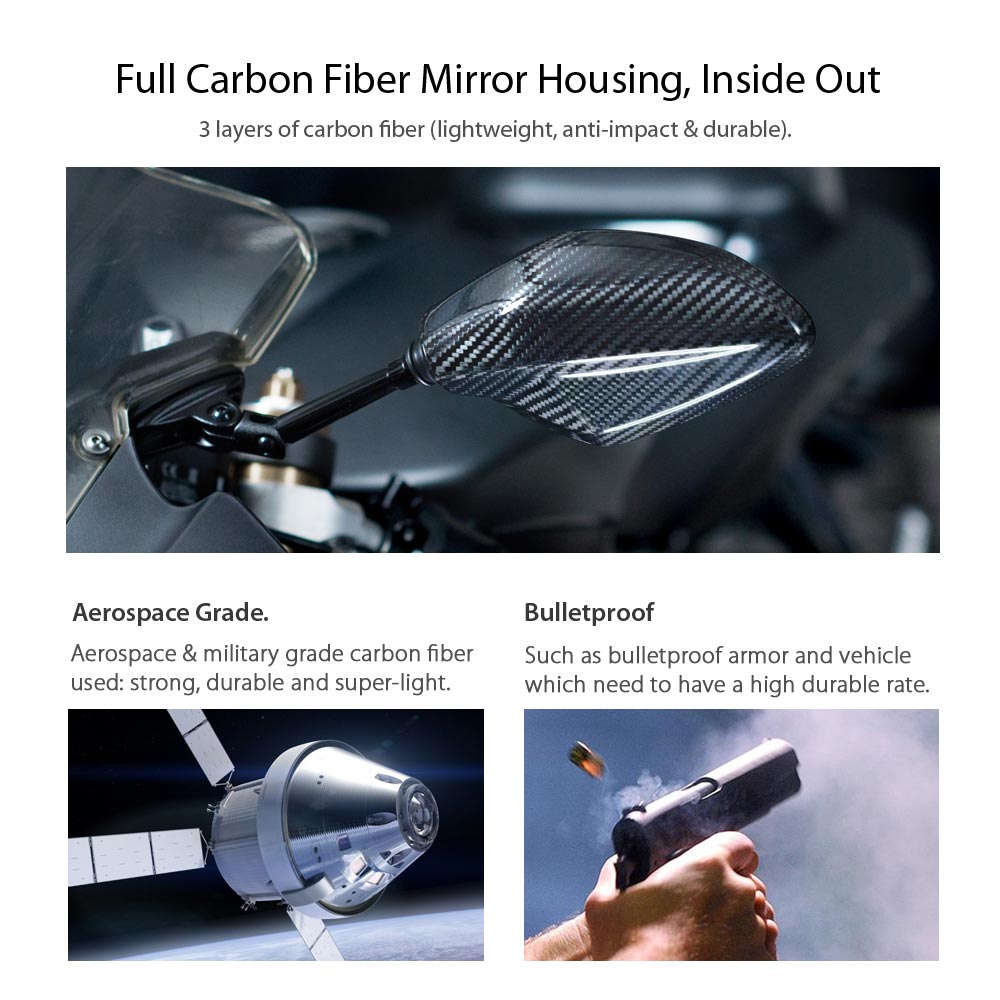

2.カバーだけでなく、100%のカーボンファイバー製ミラーハウジング

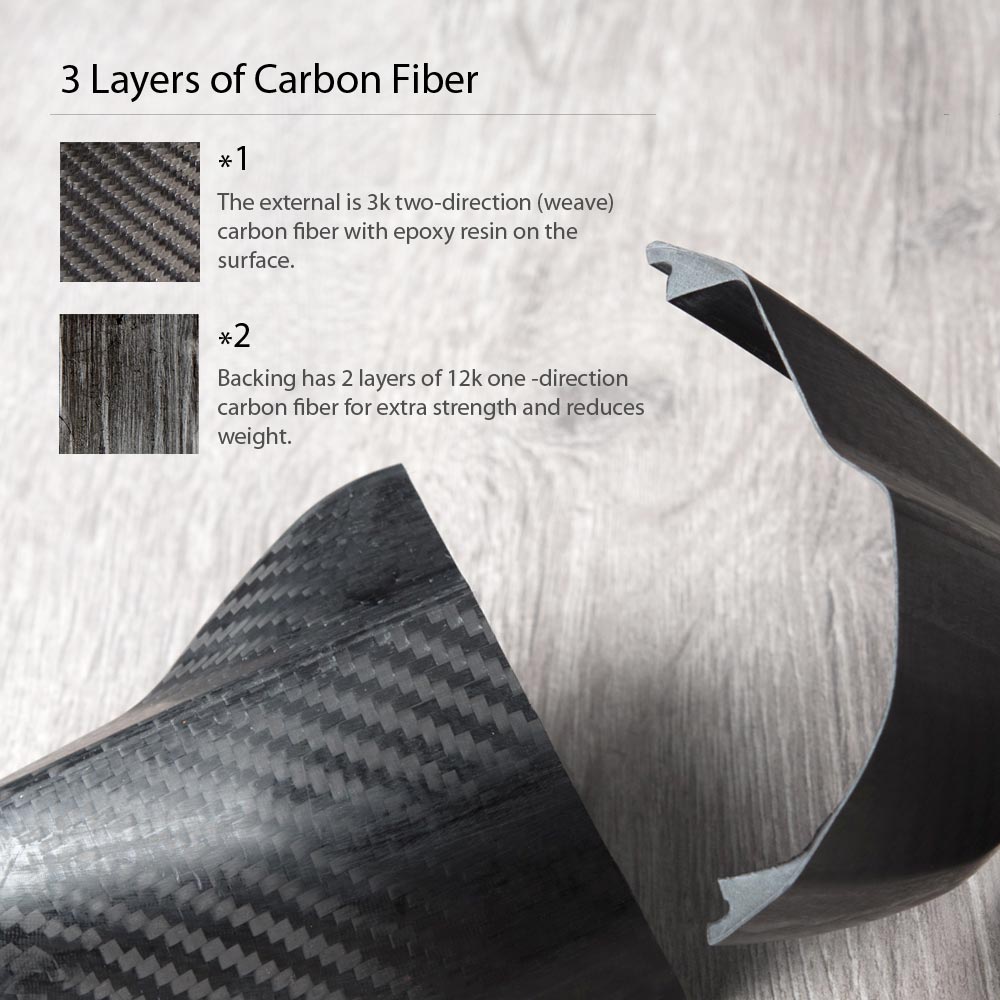

3.総計3層のカーボンファイバー:軽量、耐衝撃、耐久
4.一番外側は3Kカーボンファイバーで、おまけに表面にエポキシ樹脂塗装
5.裏打ち材は2層のUD150カーボンファイバーで、強度と軽量化両立
6.最高級のカーボンファイバー製造工程:レイアップ、真空化、ホットプレス、オートクレーブ養生

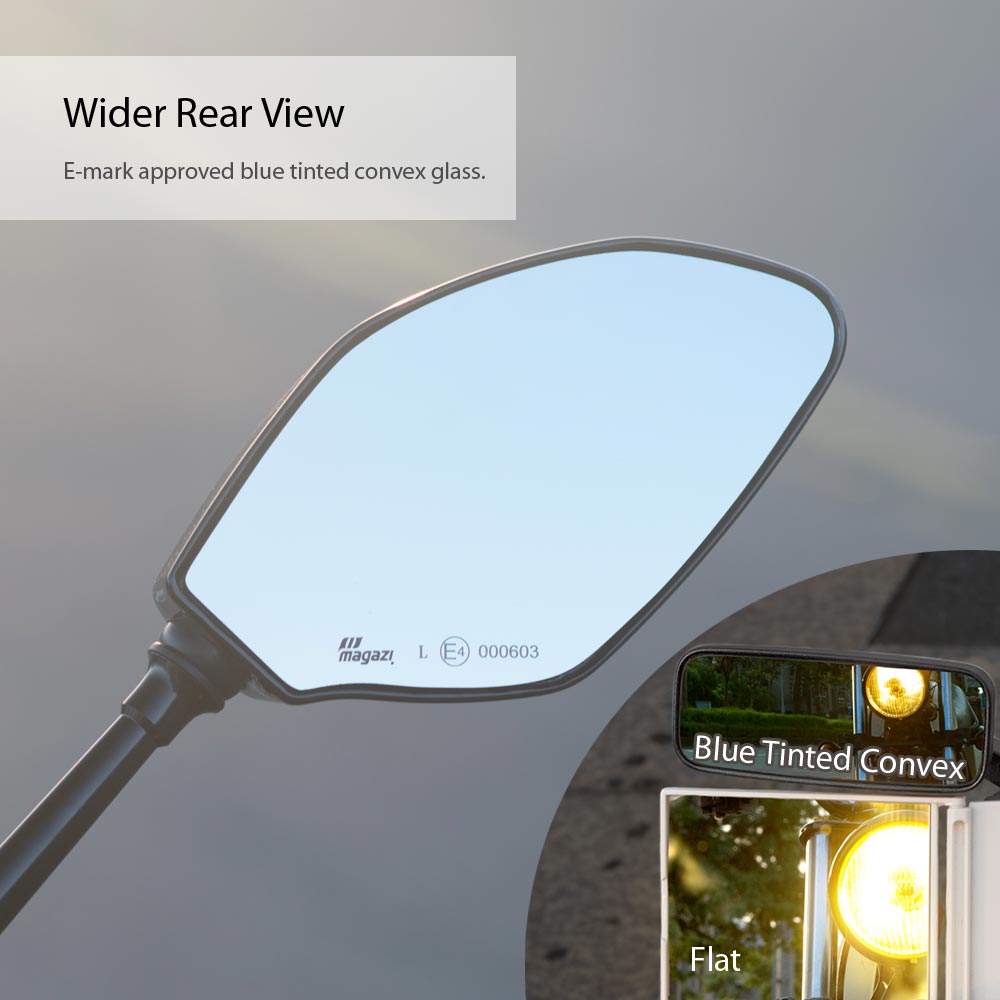

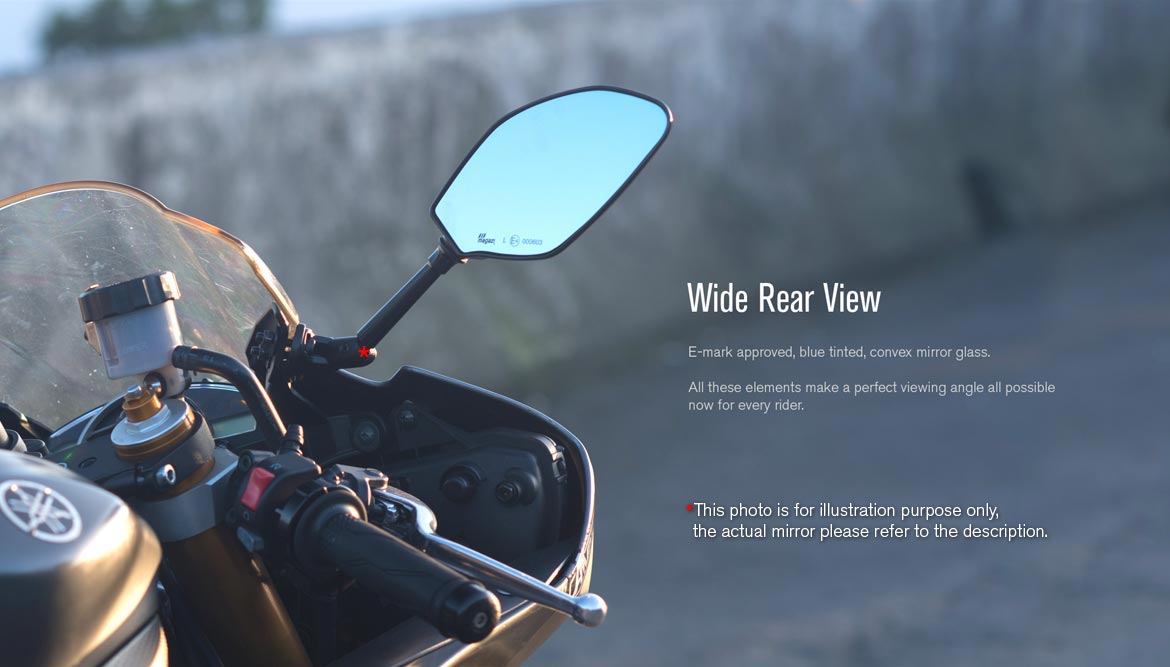

7.ヨーロッパのE-mark認証取っており青い防眩コンベックスレンズで、より広い視野ができる

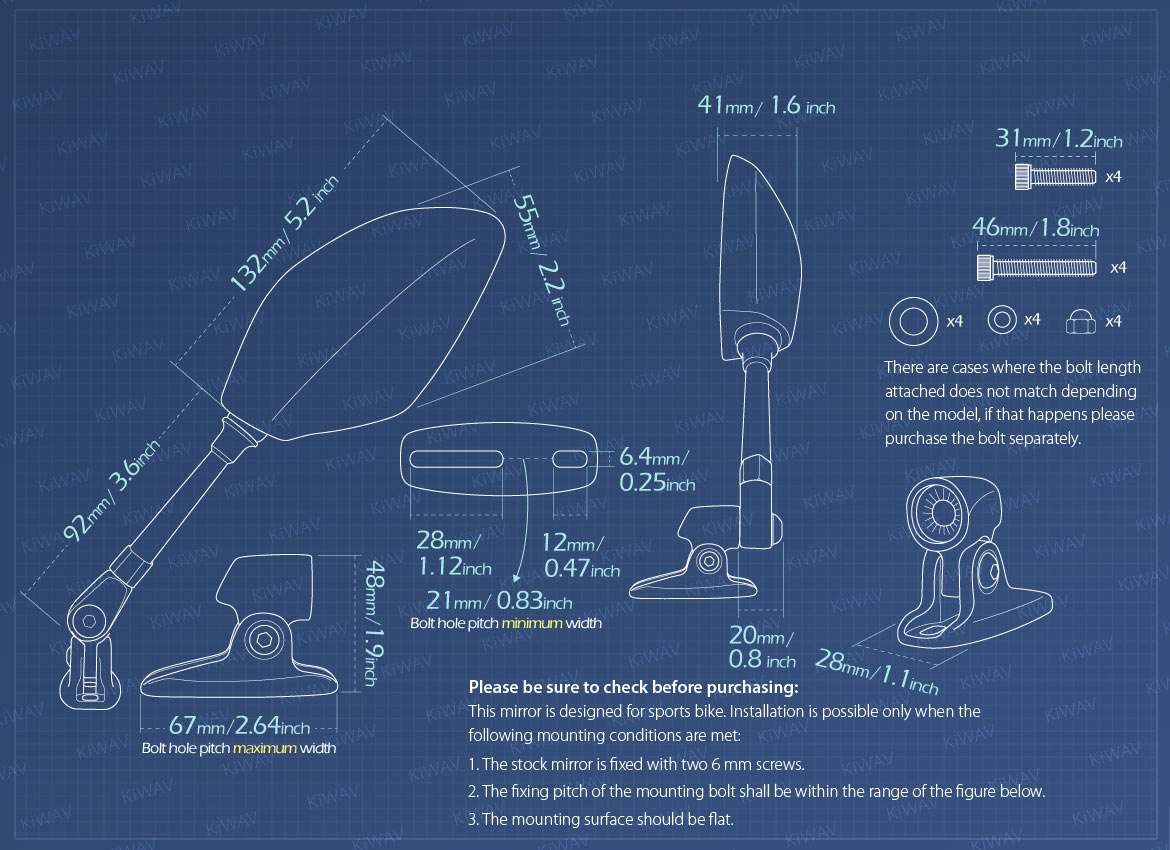

取付け説明:カウルミラー仕様になっている車両専用
取付け条件:
1.純正ミラーが6ミリボルト2本で固定されているバイク。
2.取付ボルトの固定ピッチ範囲が26mm-55mmのバイク。
3.取付け面が平面のバイク。
材料:
ハウジング:カーボンファイバー
柄:アルミニュム
色:カーボン
ガラス:青いコンベクスレンズ
調整範囲:二つの調整用ジョイント
重量:n.w.: 625g./ 1.375 lbs. (一対), g.w.: 795g./ 1.749 lbs. (全体な重量、包装を含まれ)

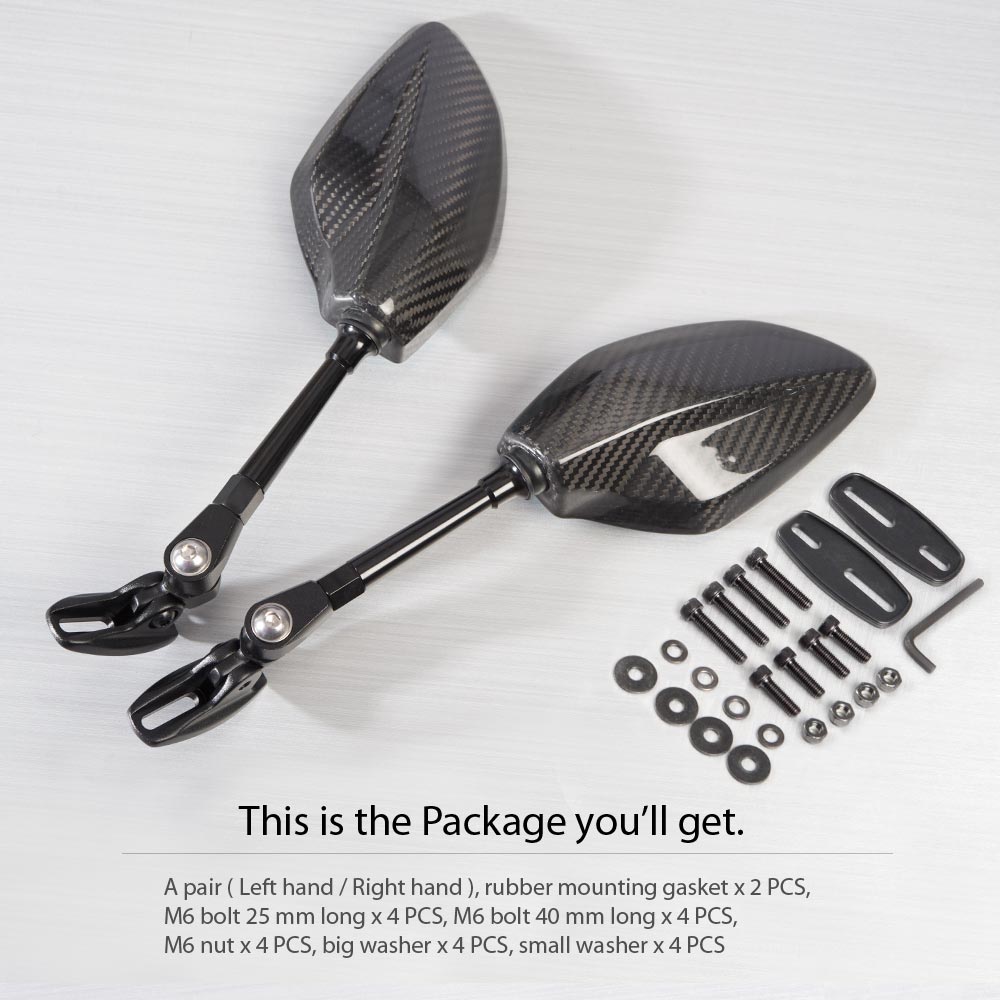

パッケージ:
一対(右側と左側)
ゴムの取付ガスケットx2
25mm長さのM6ボルトx4
40mm長さのM6ボルトx4
M6ナットx4
大きいワッシャーx4
小さいワッシャーx4
取付可能車種(代表例):
(ご購入前に取付けの説明をご確認ください)
アプリリア Aprilia
RSV4
BMW
S 1000 RR
Ducati
848 1098 1198
Honda
CBR 1000 RR、CBR 600F、CBR 600RR、CBR 900 RR、HORNET 600、S VTR、100 SP-1、SP-2
カワサキ KAWASAKI
ER-6F、NINJA 1000 ZX-10R、NINJA 600/ 636 ZX-6R、NINJA 900 ZX-9R
MVアグスタ MV AGUSTA
F4 1000
スズキ Suzuki
GSF 1200 S、BANDIT GSF 600 S、BANDIT GSF 650 / 1250 S、BANDIT GSX FA 1250、BANDIT、GSX R 1000、GSX R 600、GSX R 750、SV 1000 S、SV 650 S
トライアンフ TRIUMPH
DAYTONA 675
ヤマハ YAMAHA
FZ1 FAZER、YZF R1、YZF R6
- Feature

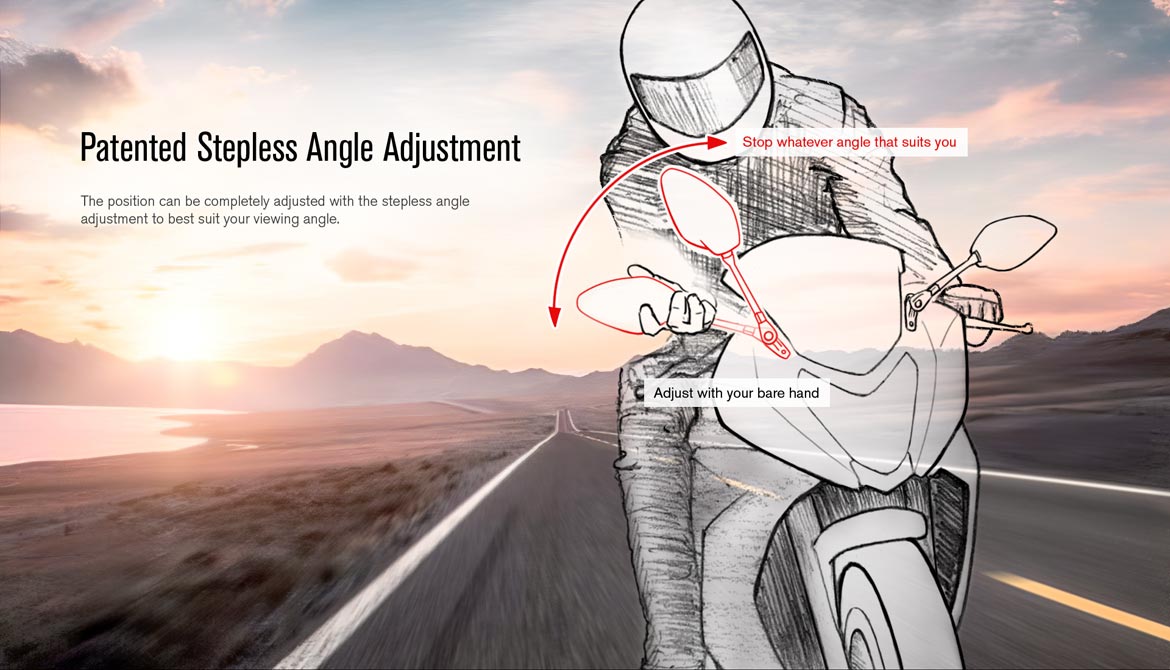

- Unique patented adjust-and-stop Teflon(PTFE) bushing joint, quick and easy adjustment without loosening the bolt/ with your bare hand.

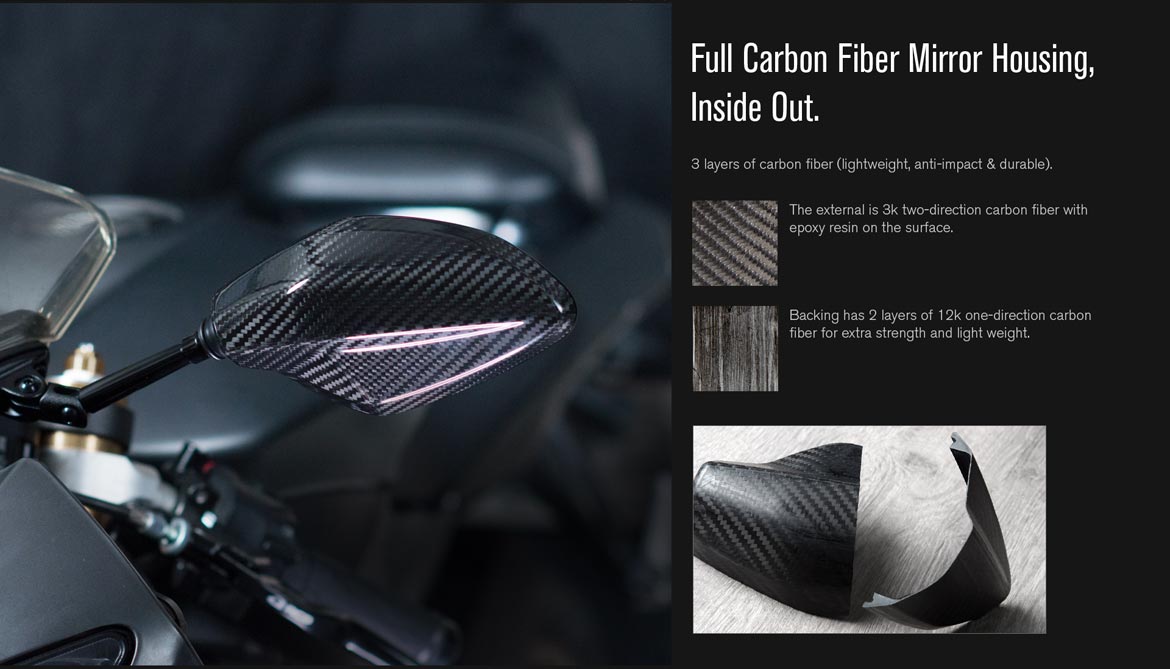

- Not just cover, the whole mirror housing is made with 100% carbon fiber.
- 3 layers of Carbon fiber (lightweight, anti-impact & durable).
- The external is 3k carbon fiber with epoxy resin on the surface.
- Backing has 2 layers of UD150 carbon fiber for extra strength and reduces weight.

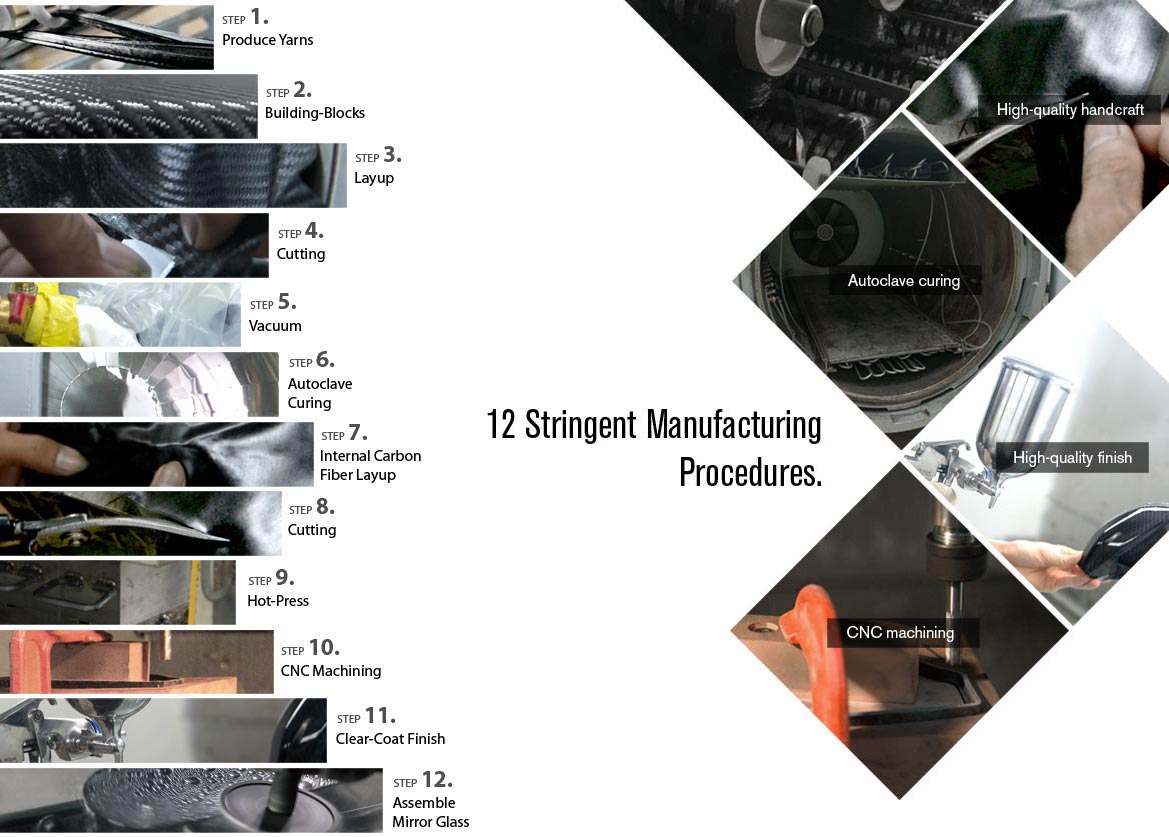

- Highest class carbon fiber producing with 4 main process steps: Layup, Vacuum, Hot-press, Autoclave curing.
- The Emark approved convex blue tinted glass provides a wide field of view.
- Material
Mirror Housing: Carbon fiber
Mirror Stem: Aluminum - Shape
Diamond - Glass
Blue tinted convex lens - Weight
n.w.: 625g./ 1.375 lbs. (pair),
g.w.: 795g./ 1.749 lbs. (total package, packing inclusive)
- Color
Carbon - Adjustment
High adjustable (3 adjusting joints) - Package
a pair ( Left hand / Right hand ),
rubber mounting gasket x 2 PCS,
M6 bolt 25 mm long x 4 PCS,
M6 bolt 40 mm long x 4 PCS,
M6 nut x 4 PCS,
big washer x 4 PCS, small washer x 4 PCS
- Fitment
Suitable for hole spacings C2C on the fairing from 26 mm to 55 mm.
See the Fitment List
How to install the mirrors?
*Please allow measuring deviation due to manual measurement.
