バイクのカウルミラー交換に困っているのでしょうか?
それならで取付の動画見てみましょう!
カウルミラー バイパーII オールグリーン フェアリング取付 マットブラックのアダプター(新ver.)
1.カスタムバイクに最適のスタイリッシュな外見

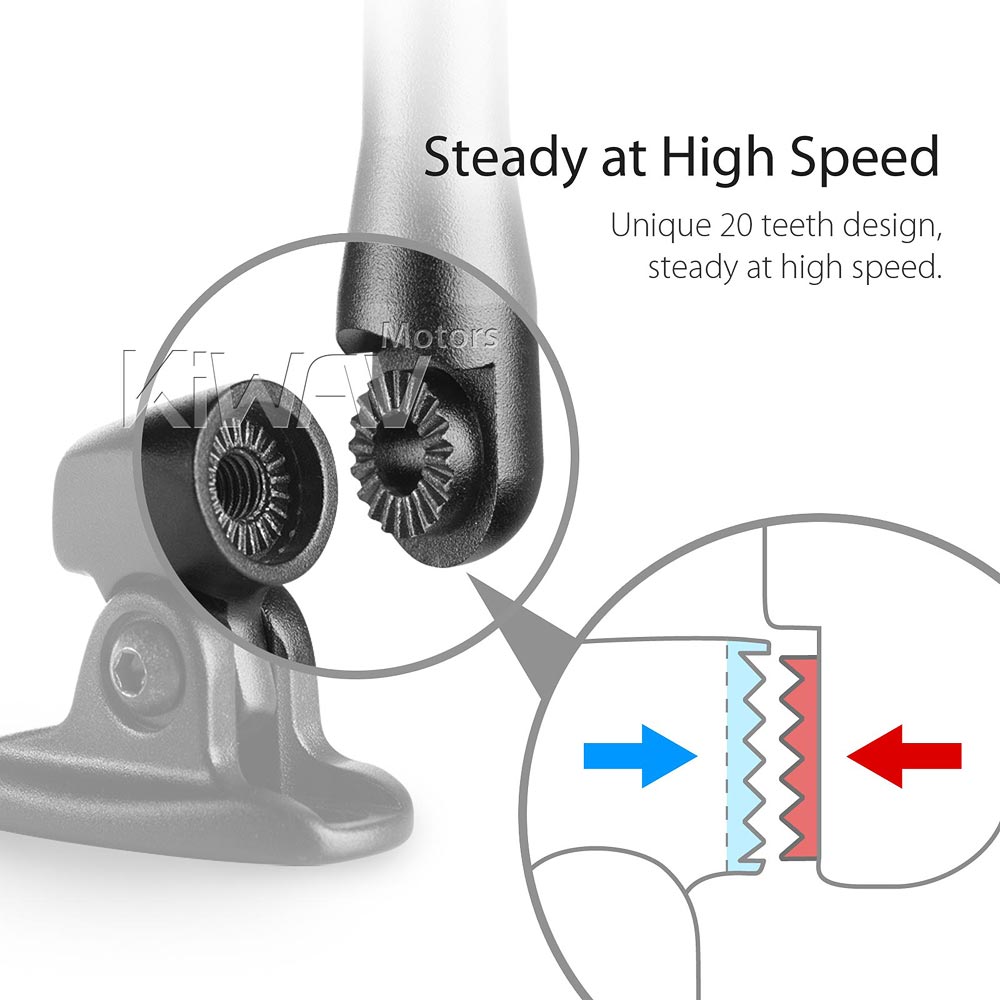

2.独特なボールジョイントでミラーを簡単で調整できる
3.コンベクスレンスでより広い視野が見えて、ヨーロッパ基準のEマークにも認証される
4.目立つなCNCアルミ製飾り付き
材料:
ハウジング ― CNCアルミとABSプラスチック
柄 ― アルミ
色:
ミラー ― 黒い鏡盤とオールグリーンのバイパー形アルミ
アダプター ― 黒
ガラス:クロムコンベクスレンズ
重量:n.w.: 540g./ 1.19 lbs. (ミラー 一対)、g.w.: 850g./ 1.87 lbs. (包装も含まれ)
パッケージ:
ミラー一対(右側と左側)
調整用ジョイント付きアダプター 2個
ゴム製取付ガスケット 2個
M6ボルト(長さ25mmの4本、長さ40mmの4本)
M6ナット4個
ワッシャー(大きめ4個、小さめ4個)
取り付け可能車種:
カウルミラー仕様になっている車両専用
取付け条件:
1.純正ミラーがM6ボルト2本で固定されているバイク。
2.取付ボルトの固定ピッチ範囲が26mm-55mmのバイク。
3.取付け面が平面のバイク。
註:汎用製品なので、部分改造や、加工は必要の可能性があります。
How to install the mirrors?
- Features
- Stylish designs for your custom applications.
- Unique ball joint, easily adjust this mirror.
- Wider vision with convex lens and stylish mirror plate gives it better look and feel.

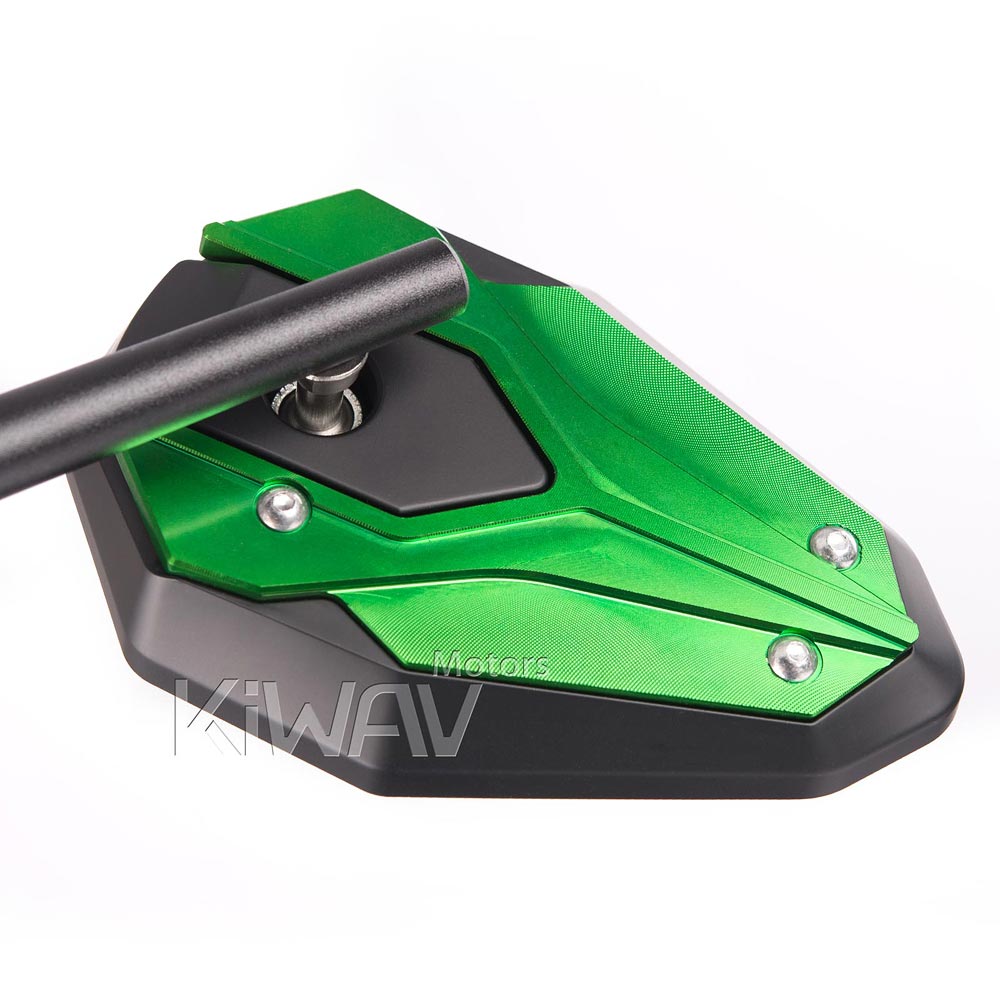

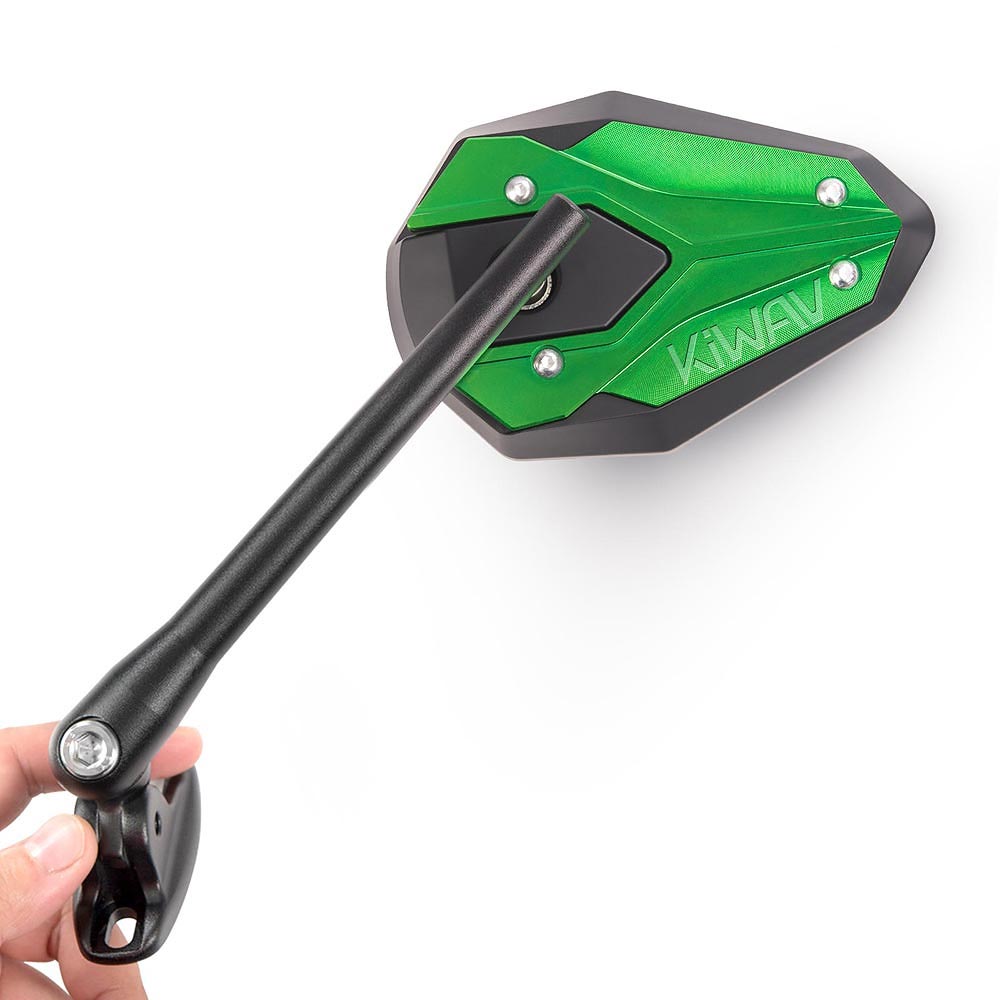

- Pair of nicely CNC crafted eye catching diamond shape aluminum mirrors.
- E-mark approved.
- Material
Mirror Housing: CNC aluminum & ABS plastic
Mirror Stem: CNC milled aluminum
- Shape
Diamond / Other - Glass
Chrome convex lens - Weight
n.w.: 540 g./ 1.19 lbs. (pair),
g.w.: 850 g./ 1.87 lbs. (total package, packing inclusive)
- Color
Mirror: Black mirror plate & green viper shape aluminum
Adapter: Matte black - Adjustment

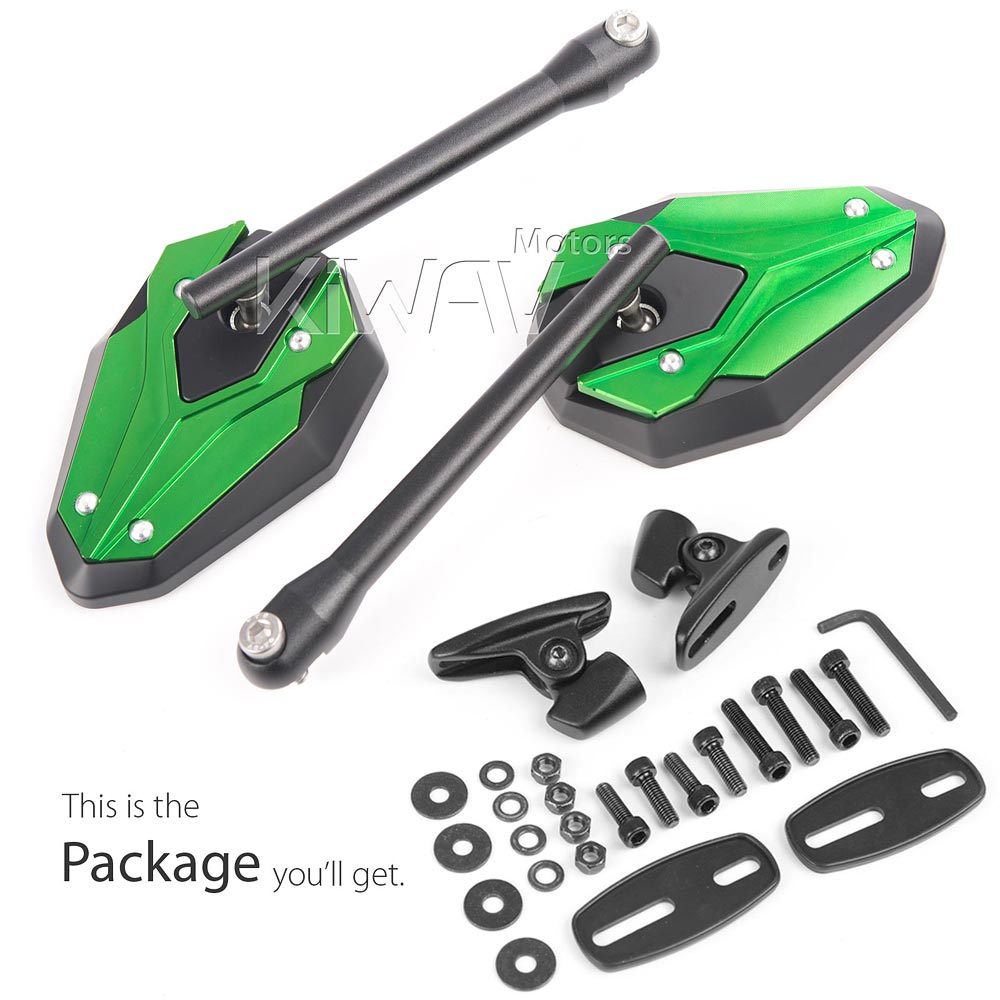

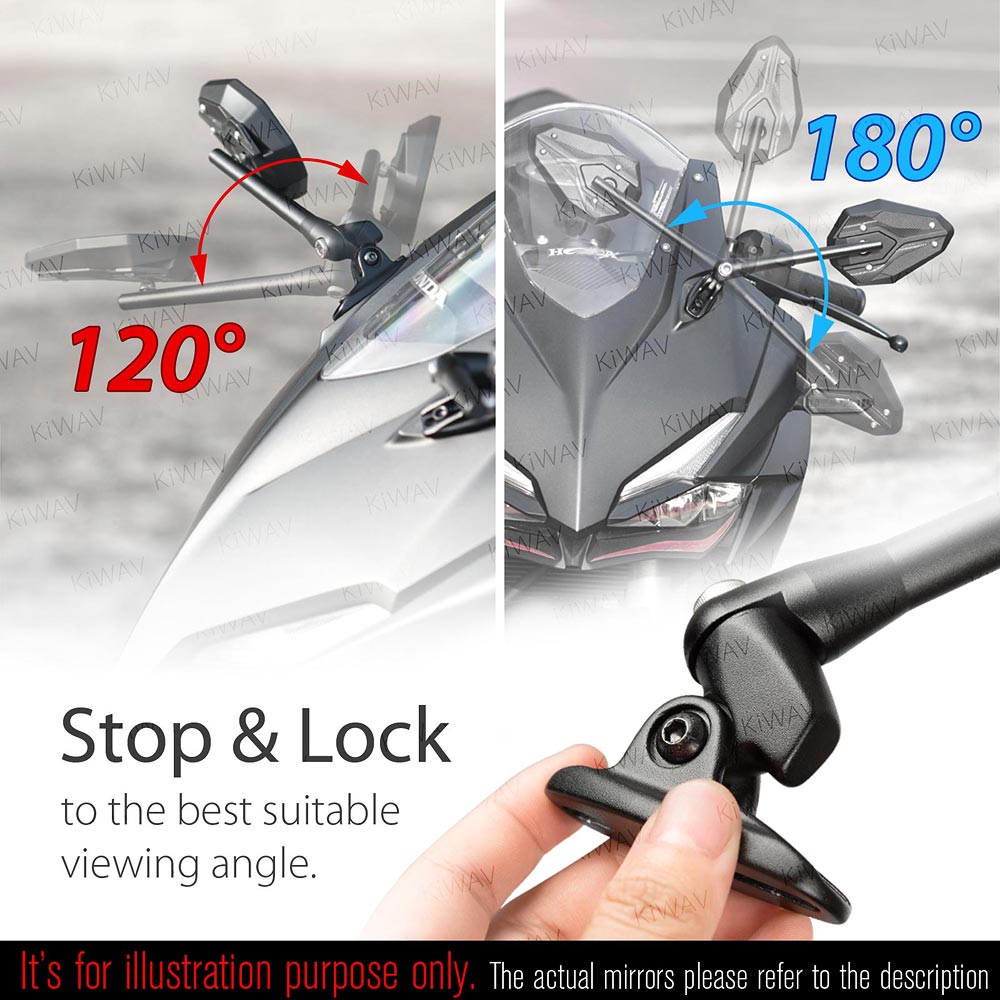

Highly adjustable (3 adjusting joints) - Package
A pair of mirrors (Left hand / Right hand),
adapter with toothed adjustment joint x 2 PCS,
rubber mounting gasket x 2 PCS,
M6 bolt 25 mm long x 4 PCS,
M6 bolt 40 mm long x 4 PCS,
M6 nut x 4 PCS, big washer x 4 PCS, small washer x 4 PCS
- Compatibility

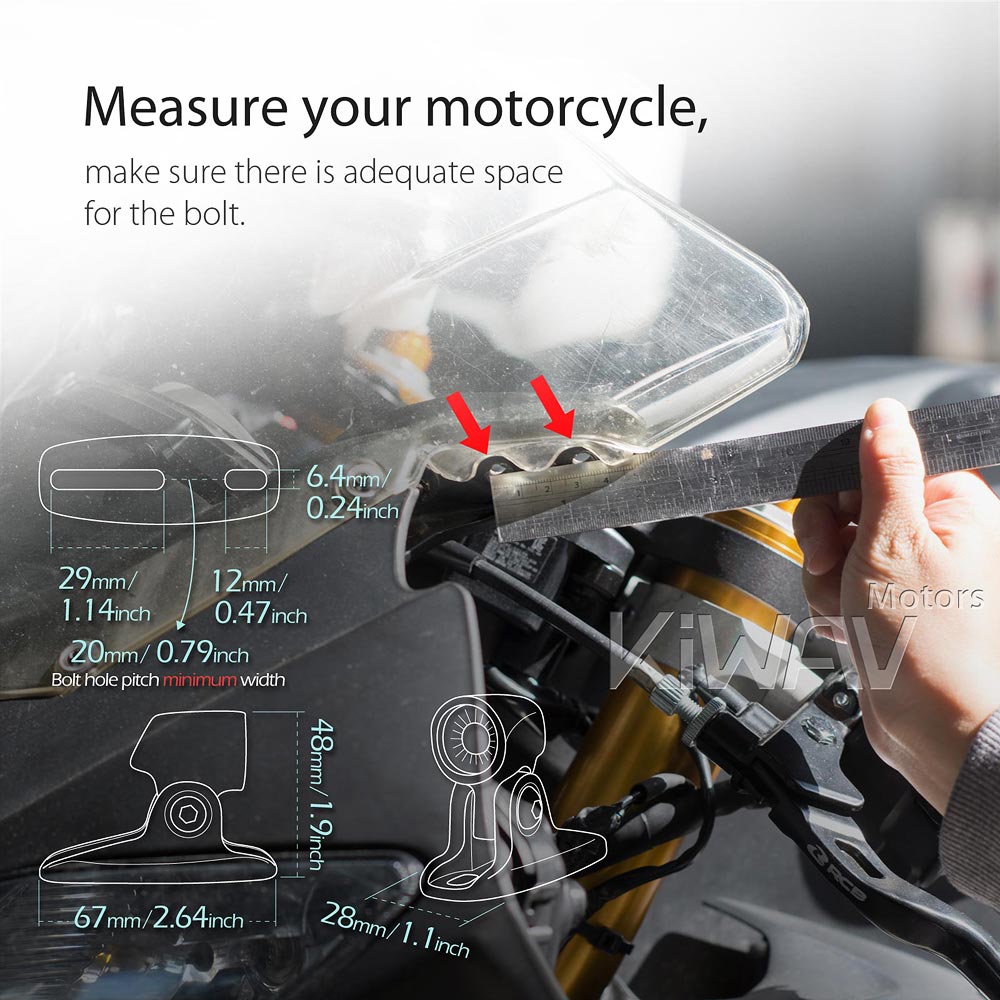

Suitable for hole spacings C2C on the fairing from 26 mm to 55 mm.
See the Compatibility List
*Please allow ±3% measuring deviation due to manual measurement.
